Olympus35RDC超声测厚仪

价格 电议
更新时间
2019-03-12 19:00:03
起订量
1件起批
服务
 资质已审查
发货地
暂无
货期
现货
近期热度
次浏览
立即询报价

产品介绍

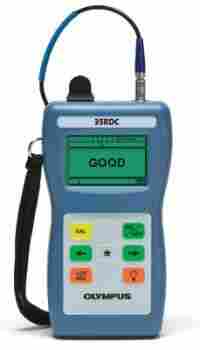

35RDC Composite Damage Checker

The handheld 35RDC is a simple Go/No-Go ultrasonic instrument designed to detect subsurface defects caused by impact damage on solid laminate aircraft composite structures. The 35RDC features a backlit LCD that displays the word GOOD if no subsurface damage is found or the word BAD when it detects subsurface damage. It uses an ultrasonic transducer that can be placed or scanned on the area of composite material suspected of having impact damage. Weighing only 0.24 Kg (8.5 oz.) and featuring a simplified keypad, this rugged ultrasonic instrument is easy to operate and requires minimal training.

Features

  • For use on solid laminate structure aerospace composites
  • Simple one-button calibration
  • Thickness range 0.63 mm to 22.8 mm (0.025 in. to 0.900 in.)
  • Simple Good/Bad/Beyond Cal display readout
  • Back light matrix display with user help text
  • AA battery operation
  • Handheld, weighing only 0.24 Kg (8.5 oz.)
  • Energy saving Auto Power off feature
  • Long battery life, 150 hours typical
  • Battery life indicator


详细资料


35RDC Composite Damage Checker

The handheld 35RDC is a simple Go/No-Go ultrasonic instrument designed to detect subsurface defects caused by impact damage on solid laminate aircraft composite structures. The 35RDC features a backlit LCD that displays the word GOOD if no subsurface damage is found or the word BAD when it detects subsurface damage. It uses an ultrasonic transducer that can be placed or scanned on the area of composite material suspected of having impact damage. Weighing only 0.24 Kg (8.5 oz.) and featuring a simplified keypad, this rugged ultrasonic instrument is easy to operate and requires minimal training.

Features

  • For use on solid laminate structure aerospace composites
  • Simple one-button calibration
  • Thickness range 0.63 mm to 22.8 mm (0.025 in. to 0.900 in.)
  • Simple Good/Bad/Beyond Cal display readout
  • Back light matrix display with user help text
  • AA battery operation
  • Handheld, weighing only 0.24 Kg (8.5 oz.)
  • Energy saving Auto Power off feature
  • Long battery life, 150 hours typical
  • Battery life indicator
General Environmental IP65 compliant Splash-proof, impact-resistant case. Sealed, color-coded keypad
Operating Temperature Range -10° C to +50° C (+14° F to 122° F)
Size: (W x L x H) 84 mm x 152 mm x 84 mm (3.31 in. x 6.0 in. x 1.50 in.)
Weight 0.24 kg (8.5 oz)
Standard Inclusions Wrist strap, 3 AA batteries, 5 MHz transducer, transducer cable, couplant, carrying case, rubber protective boot with neck strap, instruction manual, two-year limited warranty
Display Modes
Digital Readout Good, Bad or Beyond CAL thickness
Advanced user setting shows A-scan or waveform. For use by qualified NDT personnel only.
Thickness Measurement Range** 0.63 mm to 22.8 mm (0.025 in. to 0.900 in.)
** Thickness range depends on material, transducer, and surface conditions.
Material Velocity Fixed velocity for carbon fiber aerospace composite
Transducer Frequency 5.0 MHz
Measurement Update Rate 20 Hz
Deviation alarm set points Programmable +/- from calibration point. Set in advance setup
Power Supply Battery 3 AA alkaline or NiMH batteries
Operating Time 150 hours typical battery life; 30 hours continuous with backlight on
Low Battery Indicator Continuously indicates battery status
Battery Saver Auto Power Off/Continuous On
AC Power Supply Optional
Optional Accessories
USB/ADP-115: AC-115 power supply
USB/ADP-230: AC-230 power supply

*All specifications are subject to change without notice.
